Datos del producto:
|
| Potencia del calentador: | 6kw | Grado automático: | Automático |
|---|---|---|---|
| Voltaje: | AC100-120V/AC220-240V | Tipo de tela adecuado: | Algodón tejido o tejido, lino, seda, lana, fibra química, nylon.oxford, etc. |
| Procesamiento de medios: | Rollo a Roll + Auto Feeding + Auto Roll Up | Tipo de tinta: | Tinta de sublimación, tinta de pigmento |
| Color y página: | MULTICOLOR | Uso: | Campo de publicidad interior y exterior |
| Sistema operativo compatible: | Windows 7 y Windows 10 | Software: | ÓNIX |
| Resaltar: | high resolution digital textile printer,sublimation printer with i3200 print head,A1 digital fabric printing machine |
||

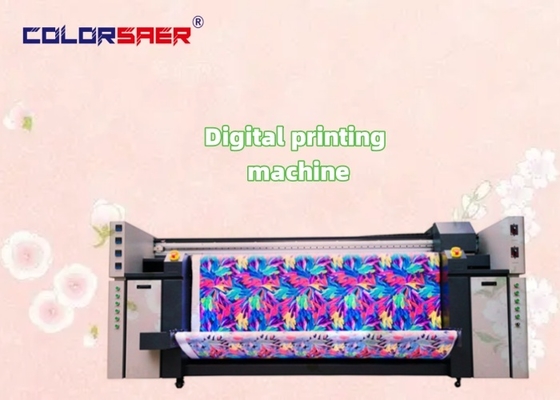

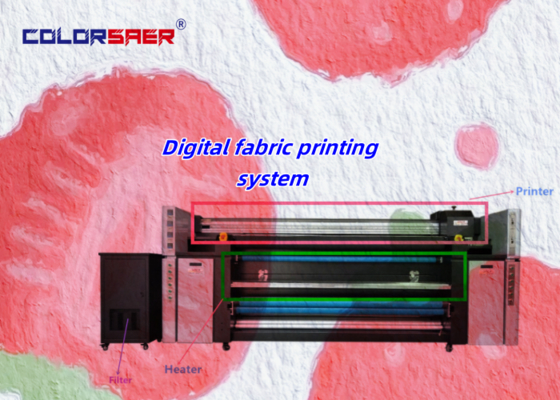

Product name: High Resolution Digital Fabric /Textile Printing Machine Sublimation Printer With 4 pcs i3200 A1 print head
Machine Specifications:
| Product Parameter | |
| Model type | CSR2200 |
| Print head | 3 pieces Epson i3200 |
| Ink | Sublimation ink, pigment ink |
| Number of nozzles | (400 nozzles*8lines)*3head |
| Color | Dual CMYK |
| Print head high | 1.5mm/6mm (adjustable) |
| Ink supply mode | Continuous ink supply |
| Max materials width | 2200mm |
| Max printing width | 2000mm |
| Roll outer diameter | 3 inch |
| Maximum weight for roll material | 100kg |
| Interface | USB2.0 |
| RAM | 128M |
| Printer Power | AC100-120V/AC220-240V(adjustive) 50/60HZ |
| Power | Heater 3.5kw |
| Printer 100w | |
| Temperature | 30-32℃ |
| Humidity | 40-60%(Non-condensing) |
|
Printing resolution and speed |
Resolution(dpi) speed |
| 360*1800dpi(3 pass) 65m2/h | |
| 720*1220dpi(4 pass) 45m2/h | |
| 720*1800dpi(6 pass) 35m2/h | |
Advantages:
1. Equipped with the feeding motor Positive and Negative transfer function, taking and feeding constant tension transmission system.
2. The unique print platform design to make the cloth always smooth in the process of printing.
3. Unique filtering lampblack system, make the picture very clean.
4. Taking up and feeding roller are inflatable roller.
5. Taking up and feeding fabric are smoothly
Main Features :
Print head:
Three Epson Print heads, faster speed, longer head life time. Feather printing function available, print heads correction and counterpoint are more easy. Intelligent print head cleaning service, supply safe and convenient print head cleaning and protection function.
Guid Rail:
Using HIWIN mute guide rail. Germany IGUS silent drag chain make your printing environment more quit ．
X axis and Yaxis:
X axis and Y axis are using AC servo motors.
Application industry:
1), personality print: such as shops, cell phone decoration shop, personality gift shop.
2), advertising industry: indoor and outdoor advertising.
3), products proofing: all kinds of traditional printing sample production.
4), studio: digital image production.
5), clothing industry: sample print or character pattern of color printing.
