Datos del producto:
|
| Color y página: | MULTICOLOR | Uso: | Campo de publicidad interior y exterior |
|---|---|---|---|
| Sistema operativo compatible: | Windows 7 y Windows 10 | Software: | ÓNIX |
| Potencia del calentador: | 6kw | Calificación automática: | Automático |
| Voltaje: | AC100-120V/AC220-240V | Tipo de tela adecuado: | Algodón tejido o tejido, lino, seda, lana, fibra química, nylon.oxford, etc. |
| Procesamiento de medios: | Rollo a Roll + Auto Feeding + Auto Roll Up | Tipo de tinta: | Tinta de sublimación y tinta pigmentada. |

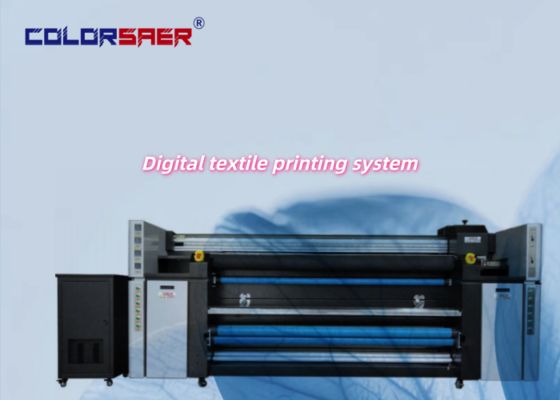

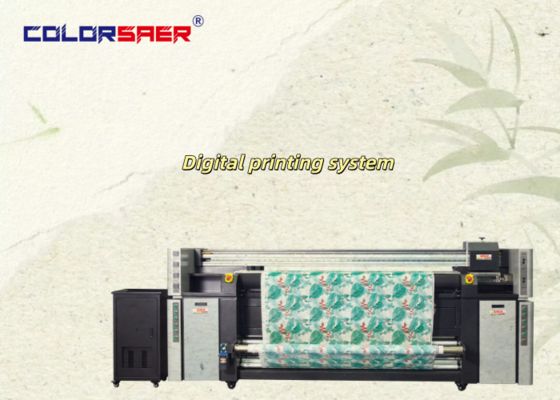

Product name: High Quality Textile Printing Equipment Epson Head Printer & Heater All-in-one printing system
Machine Specifications:
| Product Parameter | |
| Model type | CSR2200 |
| Print head | 3 pieces Epson i3200 |
| Ink | Sublimation ink, pigment ink |
| Number of nozzles | (400 nozzles*8lines)*3head |
| Color | Dual CMYK |
| Print head high | 1.5mm/6mm (adjustable) |
| Ink supply mode | Continuous ink supply |
| Max materials width | 2200mm |
| Max printing width | 2000mm |
| Roll outer diameter | 3 inch |
| Maximum weight for roll material | 100kg |
| Interface | USB2.0 |
| RAM | 128M |
| Printer Power | AC100-120V/AC220-240V(adjustive) 50/60HZ |
|
Power |
Heater 3.5kw |
| Printer 100w | |
| Temperature | 30-32℃ |
| Humidity | 40-60%(Non-condensing) |
Machine working speed:
|
Printing resolution and speed |
Resolution(dpi) speed |
| 360*1800dpi(3 pass) 65m2/h | |
| 720*1220dpi(4 pass) 45m2/h | |
| 720*1800dpi(6 pass) 35m2/h |
Advantages:
Main Features:
X axis and Yaxis:
X axis and Y axis are using AC servo motors.
Guid Rail:
Using HIWIN mute guide rail. Germany IGUS silent drag chain make your printing environment more quit
Print head:
Three Epson Print heads, faster speed, longer head life time. Feather printing function available, print heads correction and counterpoint are more easy. Intelligent print head cleaning service, supply safe and convenient print head cleaning and protection function.
Application industry:
