Datos del producto:
|
| Uso: | Campo de la publicidad interior y al aire libre | Sistema operativo compatible: | Windows 7 y Windows 10 |
|---|---|---|---|
| Incluye: | Un sistema de impresión de 3,2 m todo en uno y un filtro | Tinta: | Sublimación, Tinta pigmentada |
| Material: | Tela del poliéster, del algodón, de la seda y de las lanas | Poder grueso: | 12000W |
| Interfaz: | Es el USB3.0 | Nombre del producto: | Máquina de impresión de tela digital multicolor |
| El software: | software de ónix | Modo de color: | CMYK |
| Voltaje: | 380V | Cabezal de impresión: | Cabezal Epson de alta inmersión *8 |
| Resaltar: | Large Format Digital Fabric Printer,3200mm Digital Fabric Printer,Automatic Digital Fabric Printer |
||

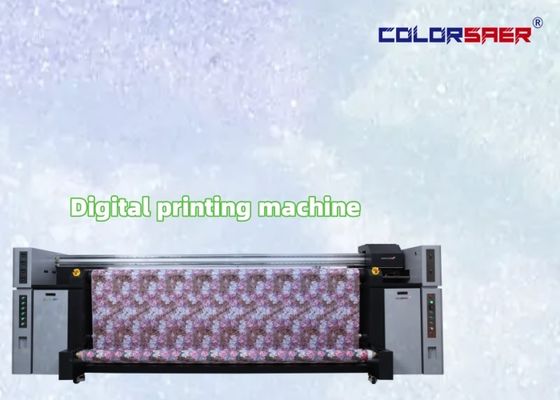

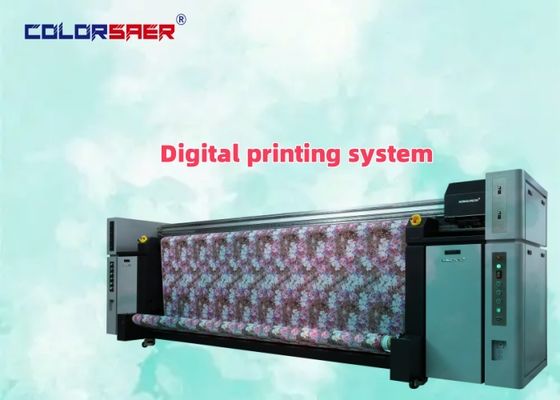

Product name: Roll to Roll 8pcs Print Heads Large Format 3200mm Wide Automatic Digital Fabric Printer
Machine Feature:
1. Direct Print image into fabric
2. This machine with print and heat in one machine save price and save place.
3. It is adopt EPSON printhead with high precision.
4. This machine max print width 3.2m
Machine Specifications:
| Product Parameter | ||
| Model | CSR3200 | |
| Print head | Piezo technology, Epson i3200 printer head*8 heads | |
| Ink | Sublimation ink, Pigment ink optional | |
| Color mode | 4 colors (CMYK) | |
| Print head higher | Adjustable (material most thick is 3mm) | |
| Number of nozzles | 400 nozzles*8lines | |
| Ink supply mode | Continuous ink supply | |
| Max materials width | 3300mm | |
| Max printing width | 3200mm | |
| Roll diameter | 3 Inch | |
| Max weight for roll materials | 100kg | |
| Interface | USB 3.0 | |
| RAM | 128M | |
| Printer with heater power | AC210-230V 50/60Hz 16A | |
| Power consumption | Sublimation Heater 3500w | |
| Printer 1200W | ||
| Environment | Temperature:25-35℃ | |
| Humidity:35-65℃(Non-condensing) | ||
| Rip Software | Onyx | |
| Net Weight | 1500kg | |
Machine working speed:
| Printing resolution and speed | Resolution (4colors) | Speed |
| 720*1200dpi 4pass | 116㎡/h | |
| 720*2400dpi 8pass | 52㎡/h | |
| 360*1200dpi 2pass | 240㎡/h |
Automatic feeding and collecting structure:
1,Intelligent infrared heater and fan drying system;
2,The machine through different quality tests is stable and competent enough for mass production requirement.
3,No Pinch roller, let the fabric no wrinkle and print smoothly
4,Keep the fabric good air permeability after sublimation
5,Printing groove designed specially for fabric printing to collect waste ink and keep
fabric clean.
6,Patented ink tanks keep ink supply constantly.
Rip Software:
1. Onyx rip sofware easy to complete the Photos / vector data,replacement of RGB / CMYK,and can easily to achieve color change.
2.Colorful color replacement function can easily reproduce the required color.
After Sales Service:
1. With one year warranty and lifelong technical support.
2. Offer Video and operation manual, and the professional technical staff online guidance.
3. Guarantee prompt warranty service for main parts repairment and replacement by international courier
(1) 12-month warranty
(2) Free techinical traning
(3) On-site service
(4) Sample free
(5) Lifetime maintenace
Applications:
Interior Home Decoration: Print on polyester fabric to make windows curtain and Tablecloth, sheets and so on.
Outside: Advertising materials to make flag,roll up banner, act fast show and so on
Competitive Advantage:
• Lower investment cost,3.2 meters width machine more usability
• One time molding mechanism design, reflect the stability and reliable of textile printer
• High speed
• Automatic high precision feeding system, make sure that the exact stationary into the cloth long figure carefree
• Using the sublimation ink, compatible with the advertising industry in backlit mode. more environmental, more beautiful effect.
